On a waterproof cooler backpack, the seam is where the product is won or lost. A shell can be genuinely waterproof and the bag can still leak, because a sewn seam puts a row of needle holes down every join and the tape over them is a temporary fix, not a permanent one. High-frequency welding removes the holes entirely by fusing the panels into one continuous skin. As a manufacturer, Sealock (YiFuLong Outdoor Gear Co., Ltd.) builds its waterproof cooler backpacks with HF-welded, seam-free construction for exactly that reason, and this guide explains the welding science, how it compares honestly with stitching, and what a buyer should look for in a factory that claims it.

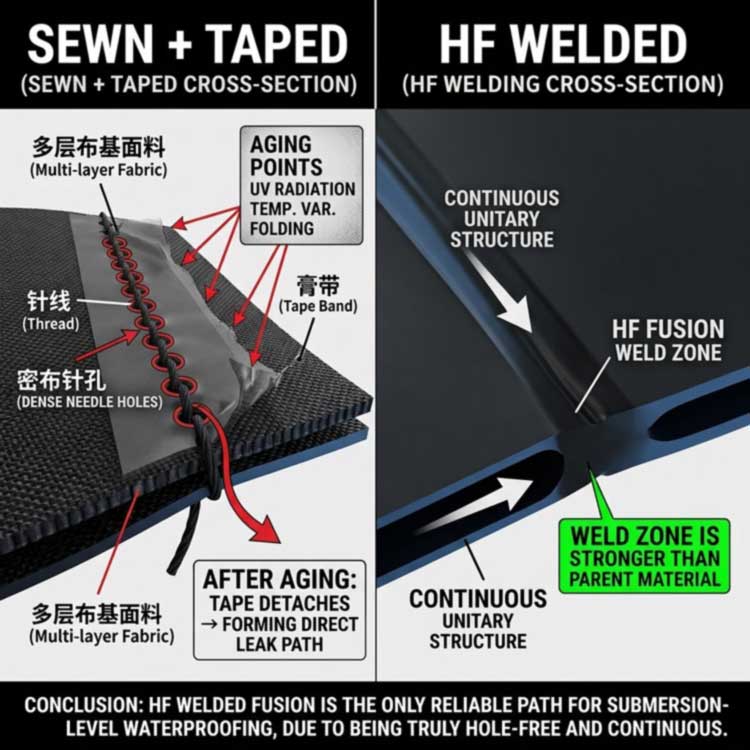

Buyers tend to judge waterproofing by the fabric, but the construction matters more. Sewing through waterproof fabric creates hundreds of needle holes along every seam line, and without treatment those holes become pathways for water — which is why seam construction is more important than the fabric's waterproof rating: a 20,000 mm fabric with critically seamed seams will leak before a 10,000 mm fabric with fully taped seams. The industry verdict for immersion-grade gear is blunt: stitched-and-taped seams rarely match welded seams under immersion-level testing, so for immersion-level waterproofing welded seams are the only reliable option.
The failure mode of the stitched-and-taped approach is predictable. Even when seam tape is applied, water can migrate along the thread paths or enter as the tape adhesive degrades over time from UV exposure, temperature swings and repeated folding. A welded seam has nothing to peel: welding eliminates stitching entirely, joining panels into a continuous fused bond with no needle holes at all. For a cooler backpack that sits on wet ground, rides a boat deck and holds a bag of melting ice, that difference is the whole product.
HF welding is not glue and not sewing — it fuses the material to itself using electromagnetic energy. Radio frequency (RF) or high-frequency (HF) welding, also called dielectric welding, uses high-frequency electromagnetic energy, normally at 27.12 MHz, to generate heat inside the material by virtue of its electrical properties. The mechanism is molecular: when thermoplastics with a high dielectric constant are placed in an alternating field, the dipole molecules in the polymer keep trying to flip to realign with the reversing field, and that rapid internal motion heats the material from within. Ultimately the polymer chains of the two parts penetrate the interface and become entangled, forming a weld once cooled.
Two features of the process matter for quality. First, the heat is internal: the electrodes stay cold and the maximum temperature develops in the middle of the welded seam, so the bond forms at the interface rather than being scorched from outside. Second, the result can be exceptionally strong — industry practitioners note that welding works by applying heat and pressure to fuse the waterproof material over the seam, producing a hermetically sealed join, and a correctly made weld can be stronger than the base fabric itself.
HF welding is not universal — it only works on the right polymers. The RF energy works only on dielectric materials with a polar molecular structure, which get excited in the high-frequency field much like food in a microwave, so the compatible list is specific: PVC, polyurethane (PU), thermoplastic polyurethane (TPU), EVA, select PET and nylon, and TPU-coated fabrics. Critically, materials that lack polarity, such as polyethylene or polypropylene, generally cannot be RF welded without special additives. This is why a genuine waterproof cooler is built on a TPU-laminated shell: the same material that makes it waterproof is the material that lets the seams be welded seam-free. A cheaper PE-faced bag simply cannot be welded the same way.
A good weld is a matter of process control, not luck. The academic literature is precise: for TPU-coated fabric, the T-peel seam strength is sensitive to welding temperature, welding time, pressure and lap length, and increasing the seam lap length effectively strengthens the welded joint. The core variables are few and defined — the main welding parameters are the temperature at the joint, the pressure, and the weld time — with the HF field's influence typically applied over a 1–5 second window on material from roughly 0.03 to 1.27 mm thick. A factory that controls these consistently produces a repeatable, leak-free seam; one that does not produces a seam that passes on Monday and leaks on Friday.
Welding is not automatically the right answer for every bag, and a straight manufacturer says so. The trade-offs are real: welded seams give superior waterproofness, cleaner aesthetics, higher seam strength and better production consistency, while stitching keeps advantages of its own — welded construction carries a significant cost premium, and stitching remains more versatile for intricate, multi-pocket designs and is often easier for new brands testing small volumes. Repairability also differs: a stitched panel can be re-sewn in the field, while a welded seam cannot.
The correct read is therefore about matching the method to the risk, not chasing a spec. Most high-performance waterproof bags use a mix of both techniques, with welding prioritized for the high-risk waterproof zones — the body and base that hold water — and stitching reserved where it adds no leak risk. For a waterproof cooler backpack specifically, whose entire job is to contain melting ice and shrug off external water, the body seams belong firmly in the welded column.
| Factor | HF-welded, seam-free | Stitched + taped |
|---|---|---|
| Needle holes | None — panels fused | One per stitch, covered by tape |
| Immersion waterproofing | Reliable | Rarely matches welded under immersion |
| Ageing failure | No tape to peel | Tape lifts with UV, heat, folding |
| Seam strength | Can exceed base fabric | Depends on thread and tape |
| Cost | Higher | Lower |
| Complex multi-pocket shapes | Harder | More versatile |
| Field repair | Not practical | Can be re-sewn |

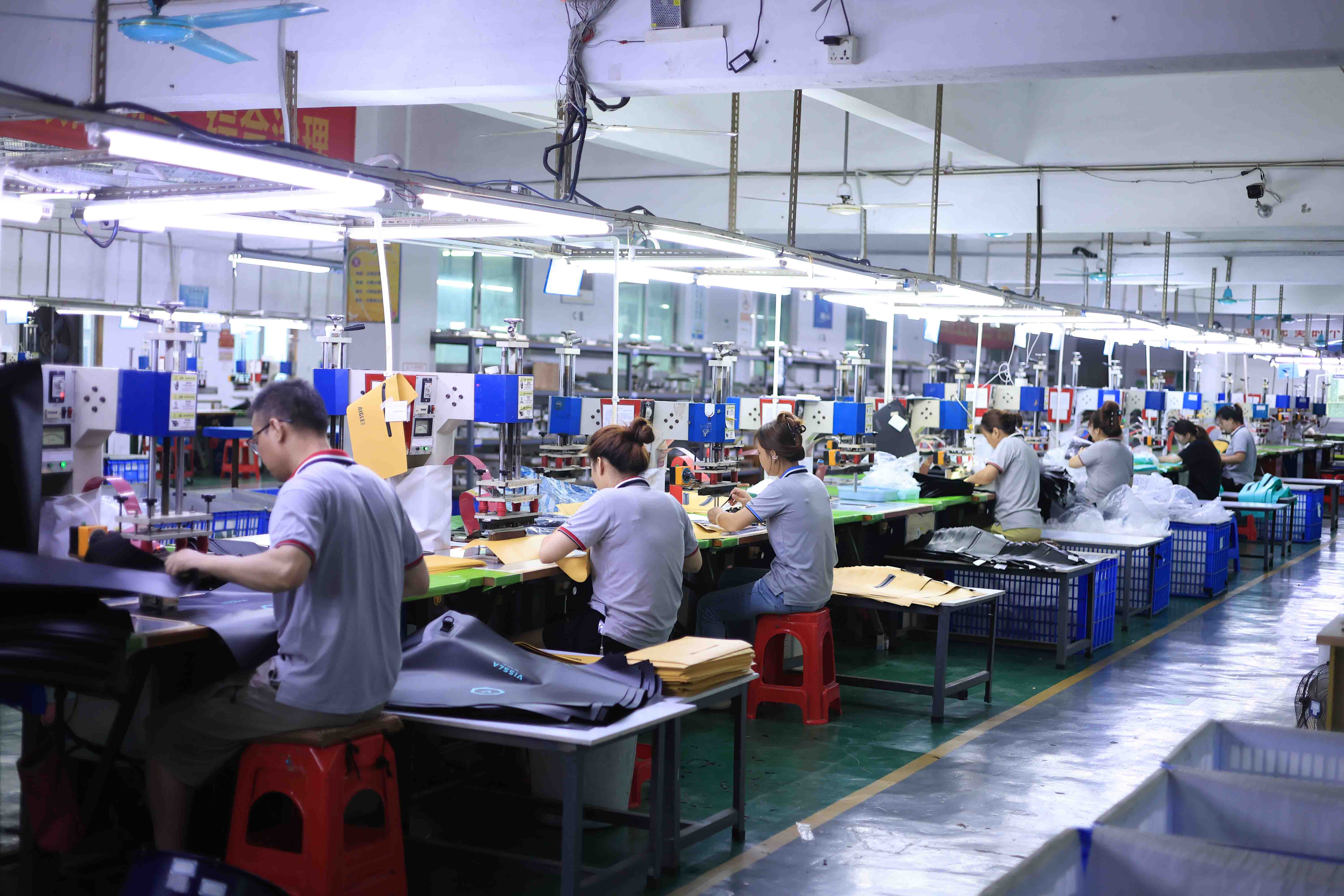

Because welding is a capability rather than a purchase — it needs the machines, the tooling and the process control — a real waterproof-cooler factory owns its welding line. Sealock is the cooler brand of YiFuLong Outdoor Gear Co., Ltd., welding insulated soft bags since 2003 across three high-frequency welding factories in Dongguan, China and Ho Chi Minh City, Vietnam.
| Founded | 2003 (over 20 years welding insulated bags) |
|---|---|
| Welding | Three HF welding factories, 27.12 MHz dielectric welding |
| Materials | TPU-laminated shells (weldable), food-grade TPU liners |
| Factories | Dongguan, China + Ho Chi Minh City, Vietnam (second Vietnam line 2024) |
| Certifications | ISO9001, BSCI, SMETA P4, GRS, HIGG, SCAN |
| MOQ / lead time | 300 pcs; samples 7–15 days; production 30–45 days; FOB Guangdong |
Notably, China is where this capability is concentrated: the most advanced welding expertise, machinery and stable mass-production systems for RF-welded, TPU-coated waterproof bags remain clustered in regions including Guangdong. Sealock welds its waterproof cooler bodies at 27.12 MHz and pairs the welded shell with an airtight or waterproof zipper, then verifies the result by immersion rather than a splash claim. For how that closure is built, see Cooler Backpack with Waterproof Zipper Explained.
Reading the science above, the levers a buyer should expect a real welding factory to control are concrete:
A welding factory should show finished welded builds, chosen by fit. These Sealock cooler bags are HF/RF-welded and seam-free in the body, all real:
| Image | Model | Form | Weld & seal | Link |
|---|---|---|---|---|
|
22L IPX7 Cooler Backpack (SL-I280) | Backpack | 27.12 MHz HF welded seamless, IPX7 airtight zip | View |
|
Waterproof Soft Cooler Backpack | Backpack | Fully welded TPU body, waterproof | View |
|
Waterproof Soft Cooler 12/15/20L (SL-I032) | Sling / compact | 27.12 MHz HF welded seamless, IPX7 | View |
|
RF-welded IPX8 Cooler Tote | Marine tote | 100% seamless RF welded, IPX8 leakproof zip | View |
The pattern is consistent: the body and base — every zone that must hold water — are welded seam-free, and the closure is a waterproof or airtight zipper welded into that body. Water resistance is stated by IPX level and validated by immersion, not by the word "waterproof."
Sealock develops welded waterproof cooler backpacks to a brand's own design, and demanding requirements are welcome rather than a problem. Beyond color and logo, the factory builds from the ground up — a brand brings a sketch, a sample, a target IPX rating or a full performance spec, and the China base engineers the pattern, welding tooling, closure and hardware to meet it, then carries it from sample to production. Complex structures, specialised weldable materials, airtight-zipper integration, brand-specific hardware and strict performance or compliance targets are all within scope; a genuinely difficult brief is exactly what a welding factory with its own tooling exists to solve. Ground-up development runs longer than a stock edit, so a brand should book against its launch date. For how brands set these specs and the wider sourcing mechanics, see Custom Cooler Backpacks for Outdoor Brands and Soft Cooler Backpack Supplier: MOQ, Lead Times & FOB Sourcing Explained.
A welded claim is only as good as its verification. Sealock runs in-house IQC, IPQC and OQC: incoming checks on weldable TPU fabrics and food-grade liner; in-line inspection of every weld seam as it is made, since a weld defect is invisible once the bag is assembled; and an outgoing gate with AQL sampling, a full water-immersion batch test that submerges sealed builds to confirm the welds and closure hold, and a signed gold-sample comparison, with SGS or QIMA third-party inspection available. Behind the line, ISO9001, BSCI, SMETA P4, GRS, HIGG and SCAN keep the factory audit-ready.
Q: Why are welded seams better than sewn seams on a waterproof cooler backpack?
A: Sewing puts needle holes down every seam; even taped, water migrates along the thread paths and the tape eventually lifts with UV, heat and folding. HF welding fuses the panels into a continuous skin with no holes and no tape to fail, which is why welded seams reliably pass immersion testing while stitched-and-taped seams usually do not.
Q: What is HF (high-frequency) welding, and what frequency is used?
A: HF or RF welding, also called dielectric welding, uses a high-frequency electromagnetic field — normally 27.12 MHz — to excite polar molecules in the material so it heats from the inside and the two panels fuse at the interface. The electrodes stay cold; the heat forms in the seam itself, and a good weld can be stronger than the base fabric.
Q: Can any cooler bag be welded, or does the material matter?
A: The material matters. HF welding only works on polar thermoplastics such as TPU, PVC, PU, EVA and coated nylons; polyethylene and polypropylene generally cannot be RF-welded without additives. That is why a genuine welded waterproof cooler is built on a TPU-laminated shell — the same property that makes it waterproof makes the seams weldable.
Q: Is a welded cooler always better than a stitched one?
A: For waterproofing the water-holding zones, yes — but welding costs more and is harder for intricate multi-pocket shapes, while stitching is more versatile and field-repairable. The right build welds the body and base and reserves stitching for zones that add no leak path. For a cooler that holds melting ice, the body seams should be welded.
Q: How do I verify a supplier really welds its own bags?
A: Ask for the welding frequency, whether welding is in-house or subcontracted, and how welds are validated, then request a real-time video of the welding line and an immersion test of a finished bag. A genuine welding factory can discuss weld parameters and show the line; a trader cannot.
Sourcing welded waterproof cooler backpacks? Sealock (YiFuLong Outdoor Gear Co., Ltd.) manufactures HF-welded, seam-free cooler backpacks factory-direct from its own 27.12 MHz welding lines in China and Vietnam, validated by immersion testing. Send a target IPX rating and spec, and the team will engineer the weld, material and closure to meet it.
Email: info@sealock.com.hk | Phone: +86-13632981825 | See a welded waterproof cooler backpack
Welding process data, material weldability and seam-performance references cited here reflect publicly available engineering, academic and industry sources as of mid-2026 and are general guidance; actual weld performance depends on material, tooling and process control. Confirm specifications at sampling.
